PLC packages

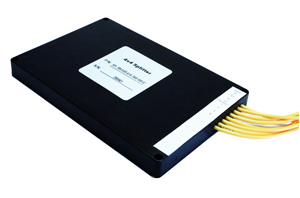

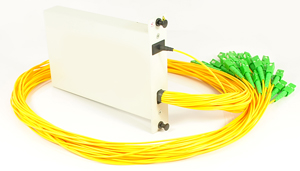

| | SteelBox is the simpliest package type. It is designed for 250 or 900um fibers. Compact dimensions allows the installation in splice trays or hermetic closures. | | SteelBox | | ABS - small plastic box. It secures the fibers due to the diameter of subunits from 2.0 to 3.0mm. It is popular in MDU systems. | | ABS | | LGX - metal cassette, which may hold from 1 to 2 splitters inside. | | LGX | | | For bigger splitters, e.g. 1x32 we recommend using LGX wattle package. They allow to reduce the attenuation and number of connections.
| LGX wattle
| | LGX cassettes can be placed in C-Box 1Ux19" panel. It is perfect solution for telecom operators, CATV networks and monitoring. | | C-Box | | | Magnum patchpanel is 1U, 19’’ packing splitter solution. It was specially designed for high density applications. Magnum allows to safe up to 60% of space in 19’’ rack cabinets. Colored in grey (RAL 7035) or black (RAL 9005). Patch panel is dedicated for PON and CATV based on
PLC splitter technology. | | Magnum |
Ordering examples:| V-SPL-SM-PLC-1X16-900-WB | Splitter SM PLC 1x16 900 μm, wide band
| | V-SPL-SM-PLC-ABS-1X32-900-WB | Splitter SM PLC 1x32 in ABS, 900 μm, wide band | | V-SPL-SM-PLC-LGX-1X3-900-WB | Splitter SM PLC 1x3 in LGX, 900 μm, wide band | | G-PP-C-BOX-2XLGX-BK-M | C-Box 1 U for 2x LGX, color: black mat | | V-SPL-SM-PLC-MGM-4X1X8-WB-SCA | Splitter SM PLC 1x8, 4x in Magnum, wide band, SC APC |
|
