LeaderBOX
LeaderBOX - pulse surpressor for reflectometric measurements. New product re-build  Lightweight
Small dimensions
Armoured cable length

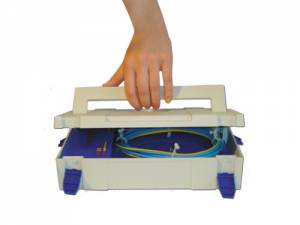

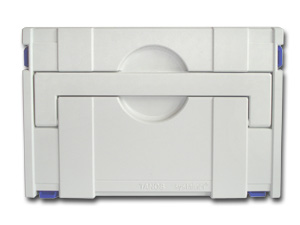

LeaderBOX is a pulse surpressor for reflectometric measurements with the help of OTDR (Optical Time Domain Reflectometer). Pulse surpressor stabilizes with the significant output signal and eliminates measured dead zone. LeaderBOX allows the measurement of fibers up to 300 km long. It's made of ABS plastic which is characterized by high durability. The choice of fibers and fiber optic connectors guarantees adjustment to the type of measurement. | |
Features: Durable case made of ABS
No spliced connections – fiber continuity
Fiber termination on armoured cable – resistant to phisical factors (bending, stretching)
Lightweight
Wide range of fibers and types of connectors | |
|
|
Technical data:| Parametrs | E-LDRBOX -SM1 | E-LDRBOX -SM2 | E-LDRBOX -MM1-1 | E-LDRBOX -MM1-2 | E-LDRBOX -MM2-1 | E-LDRBOX -MM2-2 | Fiber type | G.652D Corning | G.652D Corning | G.651 Corning OM2 50/125 | G.651 Corning OM2 50/125 | G.651 Corning OM1 62,5/125 | G.651 Corning OM1 62,5/125 | Fiber lenght [m] | 1000 | 2x1000 | 200
| 2x200
| 200 | 2x200
| Line connector | SC/UPC SC/APC8° E2000/UPC E2000/APC8° FC/UPC FC/APC8° LC/UPC LC/APC8° ST/UPC | SC/UPC E2000/UPC FC/UPC LC/UPC ST/UPC |
|
|
|
