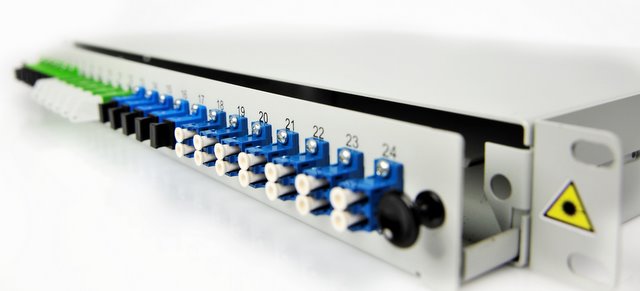

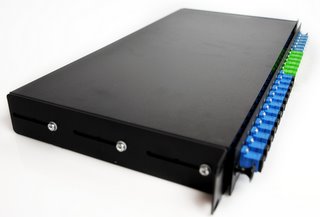

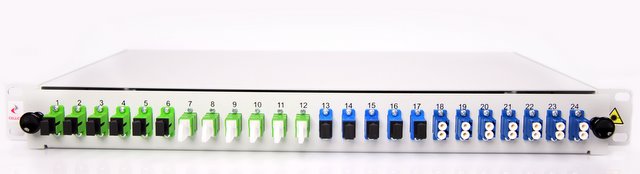

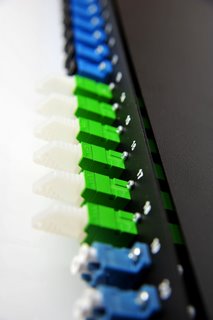

SLIDE panel - 1U patchpanel 19

The new design of 1U fiber optic patchpanel allows you to easily install and maintain the fiber optic connections. The 19-inch construction with a slide panel and high density provide a very accessible termination and maintenance without removing the panel from the rack.

Rackmount patchpanel enclosures are designed for direct termination of up to 48 fibers (24xSC DUPLEX). The heavy-duty metal body provides excellent protection of the inside fibers. To meet your specific requirements we offer a large variety of connectors and adapters. Enclosure has a slide and removable drawer. It can be provided fully loaded with adaptors, pigtails, cable glands or unloaded. For splicing applications - up to four splice trays - can be easily mounted in side.
19” rackmount module for singlemode and multimode fibers up to 24 adapters easy access to jumpers and terminated cables up to 4 splice cassettes RAL 7035 (gray) or RAL 9005 (black) powder painting as a standard provides minimum bending radius ( 1,5 ') available with pigtail assemblies adjustable mounting brackets (19” mounting posts and recessed) FTTH, Telecom, WDM and LAN solutions
Dimensions: U x 19” x 22cm Versions: PP-1U-SLIDE-12SCSX – 12 ports SC simplex/E2000 simplex PP-1U-SLIDE-12SCDX – 12 ports SC duplex PP-1U-SLIDE-24SCSX – 24portów SC simplex/E2000 simplex PP-1U-SLIDE-24SCDX – 24portów SC duplex PP-1U-SLIDE-12STFC – 12 ports ST/FC PP-1U-SPIDE-24STFC – 24ports ST/FC
