UKN - telescoping patchpanel

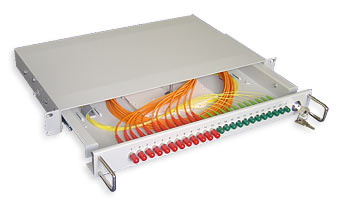

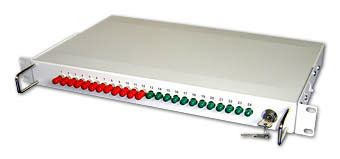

CELLCO has invented and released the new UKN Patchpanel with a sliding drawer (with telescopes) which gives easy reconfiguration and access to splice cassettes and pigtails. UKN model provides protected access to a detachable front panel. Adjustable mounting brackets allow the panel to be mounted flush with 19” mounting posts or recessed.
All rights reserved ( no e-00042753-W ) copyrights |
Features! 100% telescoping extension
 max 144 ways ( 72 SC DX ) 3UKN | option RAL 9005 (black)

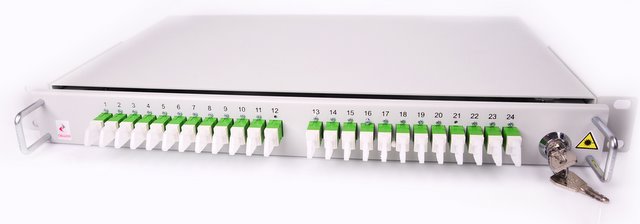

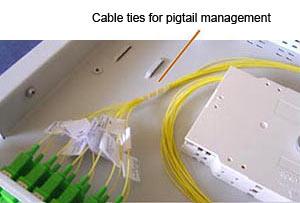

| | max 96 way (48 SC duplex) 2UKN | protected access to front panel | | max 48 way (24 SC duplex) 1UKN | 4 gland holes at rear (for cable access) | | key locker for access protection | 2 additional angled access at rear with easy mounting solution | | cable ties for pigtails | fiber bend radius control provided (3,5”) | | ports SC, FC, E2000, ST, LC, LC DX, MTRJ | pre-wired factory terminated available | | ports numbered for identification | the rear allows 4xPG gland access and 2 angled for easy access | | RAL 7035 (grey) | |
| Dimensions 1U x 19”x 250mm Available versions PP-1U-UKN-12SCSX
| - 12 ports SC simplex or E2000 simplex
- 12 ports LC duplex (24LC) | | PP-1U-UKN-12SCDX | - 12 ports SC duplex | | PP-1U-UKN-24SCSX | - 24ports SC simplex or E2000 simplex
- 24 ports LC duplex (48LC) or E2000 | | PP-1U-UKN-24SCDX | - 24 ports SC duplex (48 ports) | | PP-1U-UKN-12STFC | - 12 ports ST or FC | | PP-1U-UKN-24STFC | - 24ports ST or FC | | PP-2U-UKN-48SCSX | | | PP-2U-UKN-48 ST or FC | | | PP-2U-UKN-72SCSX | | | PP-2U-UKN-48 SC DX (96 ports) | |
Accessories Adapters (SC/PC, SC/APC, FC/PC, FC/APC, ST/PC, LC/PC, E2000/PC, E2000/APC and another)
Splice cassettes
Cassette cover
PG gland
4 cable rear entrance |  | |
|
