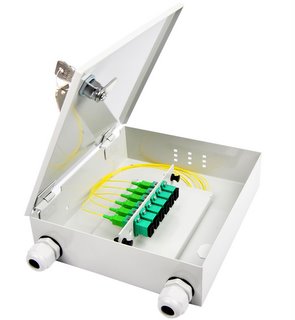

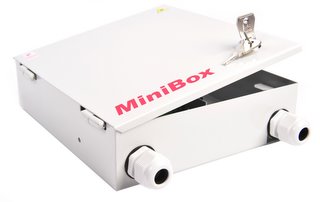

MiniBOX patchpanel

MiniBOX patchpanel together with WallBOX48 and WallBOX24(12) make completed group of wall mount cabinets. MiniBox is a high quality product, with smart and easy access as well as easy ability to enter and assemble fiber optic cable and pigtails. Features Exchangeable adapter panel max 12 ports removable locked doors komfort obsługi ports SC, FC, E2000, ST, LC 1,5mm steel finished powder painting RAL 7035 (gray) Applications WAN, FTTX, GPON, CaTV Internet Providers Energetics Dimensions 200x200x60mm Adapters panels MBL-6SCSX – 6 ports SC simplex/E2000 simplex MBL-8SCSX – 8 ports SC simplex/E2000 simplex MBL-8STFC – 8 ports ST/FC Optionally equipped with Adapters (SC/PC, SC/APC, FC/PC, FC/APC, ST/PC, LC/PC, E2000/PC, E2000/APC, others) Splice cassettes (12 heat shrink each) Splicecassette cover PG gland pigtails' plastic organizers
